2.Closed system
3.Height-adjustable toothed disc
4.Built into steel platform or ceiling
5.Ideal for automation
6.Drive by modern frequency converter technology
7.Batch sitzes of 300 - 10000 kgs
8.Driving powers of 22 to 312 kW
9.Suitable and developed for the use in a highly-concentrated initial dispersion quantity (mill charge)
Options
1.ATEX according to protecttive system Ex II 2 G c IIB T3
2.mixing container
3.Double dispersing discs
4.Vacuum execution
5.Cleaning nozzles for medium or low pressure
6.Mixing container in stainless steel execution
7.Weighing technology/Load cells
8.Cooling/Heating of the mixing container with double casing or half-pipe coil jackets
9.Temperature measurement and control
10.Recipe controlled semi and fully automatic PLC control
-
coatings
-
Paints
-
Printing inks
-
Pigment
-
Adhesives
-
Composite materials
Technical datas
|
Model |
Capacity
(mЗ）
|
Stirring power
kw
|
Stirring speed
rpm
|
Dispersing power
kw
|
Dispersing
Speed
rpm
|
|
MK-1 |
1 |
4 |
50 |
11~15 |
960~1450 |
|
MK-2 |
2 |
5.5 |
50 |
15~22 |
960~1450 |
|
MK-3 |
3 |
5.5 |
50 |
18.5~30 |
960~1450 |
|
MK-5 |
5 |
7.5 |
50 |
22~37 |
960~1450 |
|
MK-8 |
8 |
11 |
41 |
30~45 |
970~1470 |
|
MK-10 |
10 |
15 |
41 |
37~55 |
970~1470 |
-

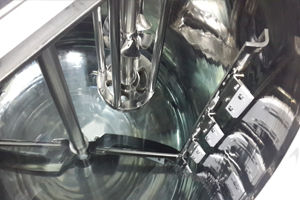

multi-agitation
-

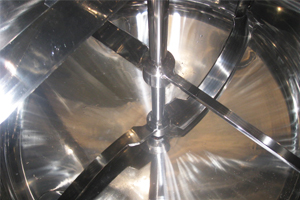

frame agitator
-

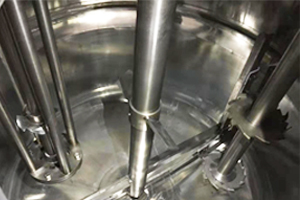

multi-agitator
-

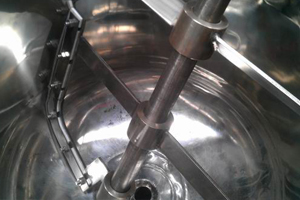

double-shaft
2.mixing container
3.Double dispersing discs
4.Vacuum execution
5.Cleaning nozzles for medium or low pressure
6.Mixing container in stainless steel execution
7.Weighing technology/Load cells
8.Cooling/Heating of the mixing container with double casing or half-pipe coil jackets
9.Temperature measurement and control
10.Recipe controlled semi and fully automatic PLC control
Printing inks
Pigment pastes
Adhesives
Fillers
Sealants
PVC-pastes / floor coverings
Casting compounds
Composite materials
Cosmetic products
|
Model |
Capacity |
Stirring power |
Stirring speed |
Dispersing power |
Dispersing |
|
MK-1 |
1 |
4 |
50 |
11~15 |
960~1450 |
|
MK-2 |
2 |
5.5 |
50 |
15~22 |
960~1450 |
|
MK-3 |
3 |
5.5 |
50 |
18.5~30 |
960~1450 |
|
MK-5 |
5 |
7.5 |
50 |
22~37 |
960~1450 |
|
MK-8 |
8 |
11 |
41 |
30~45 |
970~1470 |
|
MK-10 |
10 |
15 |
41 |
37~55 |
970~1470 |
